Handheld Fiber Microscope HW-200MF

The HW-200MF is a handheld fiber microscope that is used to inspect the end face of a fiber optic connector for impurities that might affect the transmission of the optical signals.

Share :

Type of adapters provided

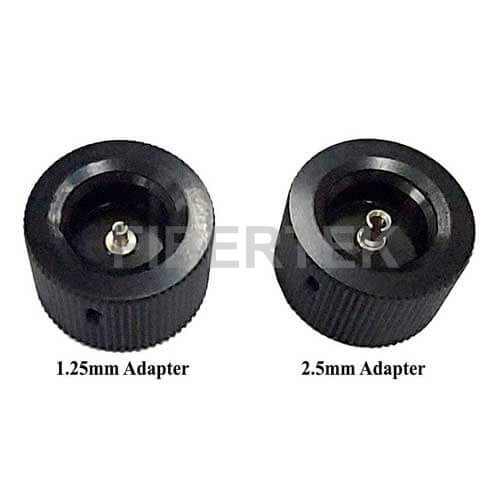

The HW-200MF fiber microscope comes with interchangeable adapters to facilitate the inspection work. For the inspection work of the FC, SC and ST fiber optic connectors, a 2.5mm universal adapter is provided. To carry out the inspection on the LC fiber optic connector, the 1.25mm adapter will be used instead.



Illumination & Magnification Sources

The HW-200MF fiber microscope will be fitted with white LED lighting as the light source to enable the inspection work. It can provide magnification to the end face of the fiber optic connector up to 200 times.
